JUNCTION BOX
>Stainless Steel Junction Box
Stainless Steel Junction Box
※ The length of the thread can be changed on required.

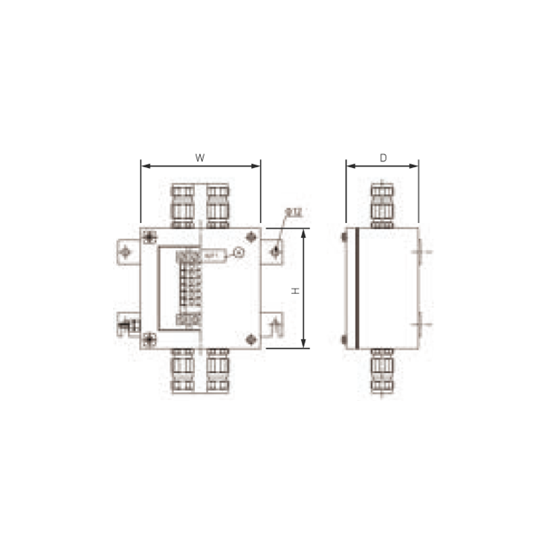

| JBE/ JBU Type I Size | WIDTH(W) | HEIG HT(H) | DEPTH1(D) | DEPTH2(D) | DEPTH3(D) | |
|---|---|---|---|---|---|---|
| JBE / JBU - 1200 | 120 | 120 | 100 | |||
| JBE / JBU - 1500 | 1501 | 150 | 150 | 125 | ||
| JBE / JBU - 2000 | 2001 | 200 | 200 | 125 | 165 | |
| JBE / JBU - 2500 | 2501 | 250 | 300 | 165 | 225 | |
| JBE / JBU - 3000 | 3001 | 300 | 300 | 165 | 225 | |
| JBE / JBU - 3500 | 3501 | 350 | 500 | 165 | 225 | |
| JBE / JBU - 4000 | 4001 | 400 | 400 | 165 | 225 | |
| JBE / JBU - 5000 | 5001 | 500 | 500 | 165 | 225 | |
| JBE / JBU - 5100 | 5101 | 510 | 780 | 165 | 225 | 325 |
| JBE / JBU - 6500 | 6501 | 650 | 950 | 165 | 225 | 325 |
| JBE / JBU - 8000 | 8001 | 800 | 1250 | 165 | 225 | 325 |
