※ The length of the thread can be changed on required.

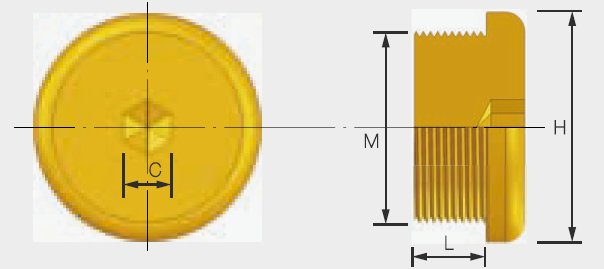

PL Type/Size	M		L		Pitch	H	C
PL Type/Size	Metric	PF/NPT	Metric	PF/NPT	Pitch	H	C

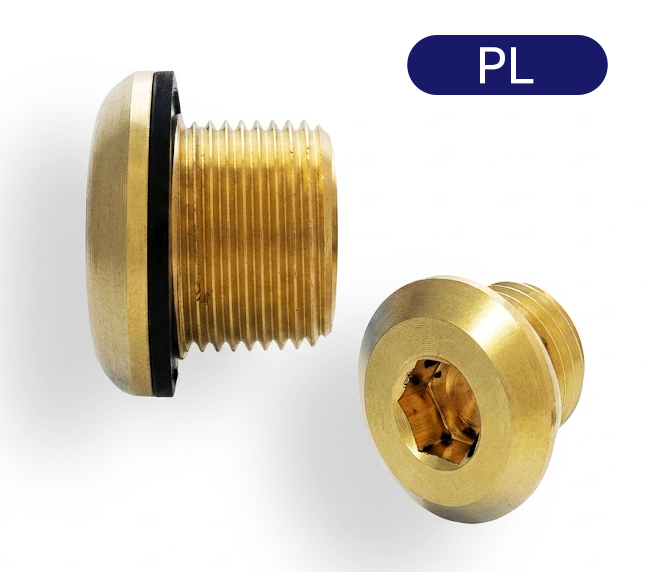

PL-16	16	"3/8"""	15	13	1.5	22	8
PL-20	20	"1/2"""	15	15	1.5	26	10
PL-25	25	"3/4"""	15	16	1.5	32	10
PL-32	32	"1"""	15	18	1.5	39	10
PL-40	40	"1-1/4"""	15	19	1.5	48	10
PL-50	50	"1-1/2"""	15	19	1.5	58	10
PL-63	63	"2"""	15	19	1.5	73	10
PL-75	75	"2-1/2"""	15	28	1.5	85	10
PL-90	90	"3"""	15	30	2	100	10
PL-100	100	"3-1/2"""	15	31	2	112	10
PL-115	115	"4"""	15	31	2	128	10

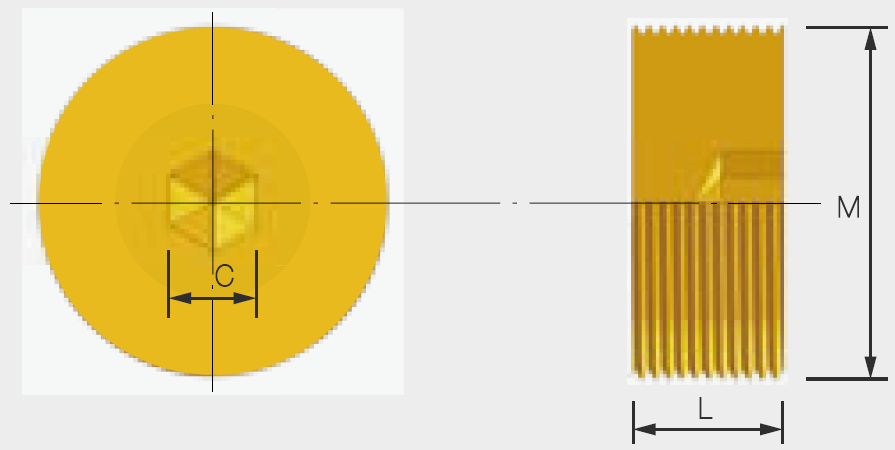

PL Type/Size	M		L		Pitch	C
	Metric	PF/NPT	Metric	PF/NPT

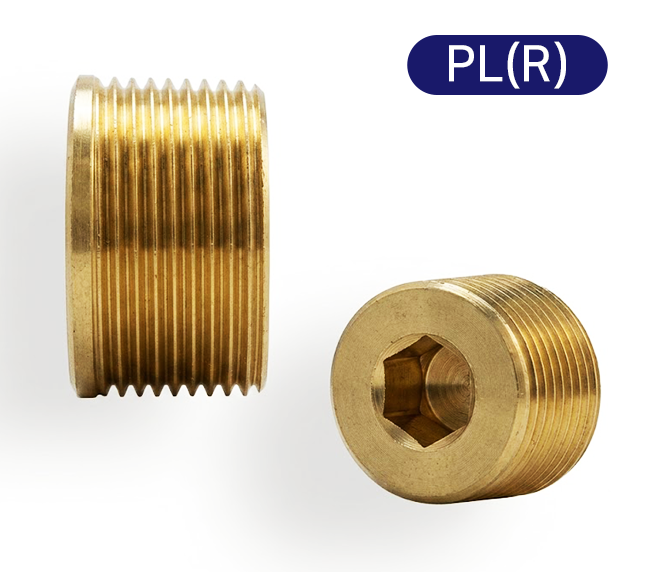

PL(R)-16	16	"3/8"""	17	15	1.5	8
PL(R)-20	20	"1/2"""	17	17	1.5	10
PL(R)-25	25	"3/4"""	17	18	1.5	10
PL(R)-32	32	"1"""	17	21	1.5	10
PL(R)-40	40	"1-1/4"""	17	21	1.5	10
PL(R)-50	50	"1-1/2"""	17	21	1.5	10
PL(R)-63	63	"2"""	17	21	1.5	10
PL(R)-75	75	"2-1/2"""	17	30	1.5	10
PL(R)-90	90	"3"""	17	32	2	10
PL(R)-100	100	"3-1/2"""	17	33	2	10
PL(R)-115	115	"4"""	17	33	2	10
