>SERRATED WASHER

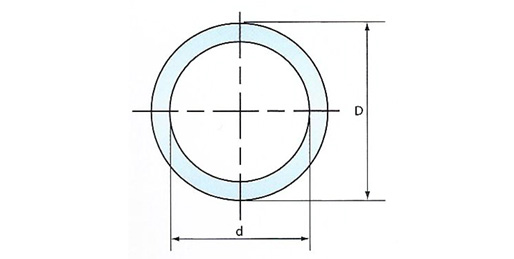

SERRATED WASHER
※ The length of the thread can be changed on required.
| TW Type/Size | Metric Thread | ML Type/Size | PF/NPT Thread | ||||
|---|---|---|---|---|---|---|---|
| A | B | T | A | B | C | ||
| TW-M16 | 17 | 25 | 1.5 | TW - 3/8" | 17 | 25 | 1.5 |
| TW-M 20 | 21 | 31 | 1.5 | TW - 1/2" | 21 | 31 | 1.5 |
| TW-M 25 | 26 | 36 | 1.5 | TW - 3/4" | 26 | 36 | 1.5 |
| TW-M32 | 33 | 47 | 1.5 | TW - 1" | 33 | 47 | 1.5 |
| TW-M40 | 42 | 55 | 1.5 | TW - 1-1/4" | 42 | 55 | 1.5 |
| TW-M 50 | 51 | 70 | 1.5 | TW - 1-1/2" | 48 | 70 | 1.5 |
| TW-M 63 | 64 | 84 | 1.5 | TW - 2" | 61 | 84 | 1.5 |
| TW-M75 | 76 | 98 | 1.5 | TW - 2-1/2" | 76 | 98 | 1.5 |
| TW-M 90 | 91 | 110 | 1.5 | TW - 3" | 89 | 110 | 1.5 |
| CNTW-M100 | 101 | 120 | 1.5 | TW - 4" | 115 | 120 | 1.5 |
