FITTING & ACCESSORIES

>

Reducer - RE

Reducer - RE

Reducer

1.Design specification
BS 6121, IEC 62444, EN 50262

2.Application
Change larger thread to smaller thread

3. Certification
IECEx KGS(IECEx KGS 19.0003x)
ATEX DEKRA

4. Type protection
112G Ex db IIC Gb / Ex eb IIC Gb / 112D Ex tb IIIC Db / IP66/67
The service temperature range is - 60'C to +120'C

5. Material
Brass, Brass with Nickel Plated(Standard), Stainless Steel

6.Accessories
Lock Nut, Gasket

제품 문의하기

► HOW TO ORDER

RE / PF1" / NPT3/4"

Reducer Type Male Thread Size Female Thread size

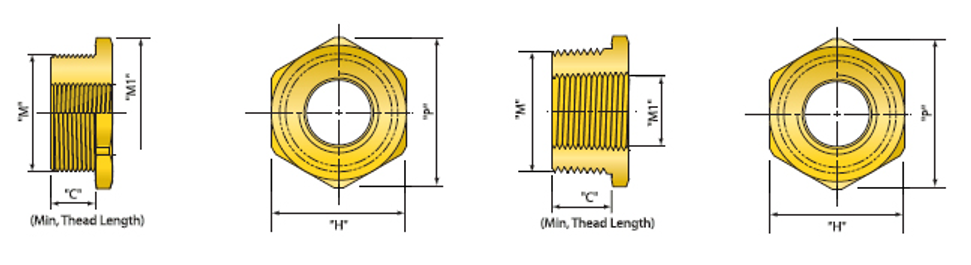

제품상세

제품 마크

제품 상세

※ The length of the thread can be changed on required.

RE Size			FEMALE
			Metric										NPT
			M16	M20	M25	M32	M40	M50	M63	M75	M90	M100	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	3-1/2"	4"
MALE	Metric	M16
		M20	●
		M25	●	●									●
		M32	●	●	●								●	●
		M40	●	●	●	●							●	●	●
		M50	●	●	●	●	●						●	●	●	●
		M63	●	●	●	●	●	●					●	●	●	●	●
		M75	●	●	●	●	●	●	●				●	●	●	●	●	●
		M90	●	●	●	●	●	●	●	●			●	●	●	●	●	●	●
		M100	●	●	●	●	●	●	●	●	●		●	●	●	●	●	●	●	●
	PF	1/2"	●
		3/4"	●	●									●
		1"	●	●	●								●	●
		1-1/4"	●	●	●	●							●	●	●
		1-1/2"	●	●	●	●	●						●	●	●	●
		2"	●	●	●	●	●	●					●	●	●	●	●
		2-1/2"	●	●	●	●	●	●	●				●	●	●	●	●	●
		3"	●	●	●	●	●	●	●	●			●	●	●	●	●	●	●
		3-1/2"	●	●	●	●	●	●	●	●	●		●	●	●	●	●	●	●	●
		4"	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
	NPT	1/2"	●
		3/4"	●	●									●
		1"	●	●	●								●	●
		1-1/4"	●	●	●	●							●	●	●
		1-1/2"	●	●	●	●	●						●	●	●	●
		2"	●	●	●	●	●	●					●	●	●	●	●
		2-1/2"	●	●	●	●	●	●	●				●	●	●	●	●	●
		3"	●	●	●	●	●	●	●	●			●	●	●	●	●	●	●
		3-1/2"	●	●	●	●	●	●	●	●	●		●	●	●	●	●	●	●	●
		4"	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
