FITTING & ACCESSORIES
>SP
Stopping Plug
1.Design specification
BS 6121, IEC 62444, EN 50262
2.Application
To close unused cable gland entries and any unused entries in electrical equipment.
3.Certification
IECEx KGS (IECEx KGS 14.0009X)
ATEX DEKRA (16ATEX0018)
4.Type protection
112G Ex db IIC Gb / Ex eb IIC Gb / 112D Ex tb IIIC Db / IP66/67
The service temperature range is - 60"C to +120"C
5.Material
Brass, Brass with Nickel
Plated(Standard), Stainless Steel
6.Accessories
Lock Nut, Gasket
► HOW TO ORDER
➀SP20 / ➁NPT 1/2"
➀ Stopping Plug Type / Size ➁ Entry Thread Size
※ The length of the thread can be changed on required.

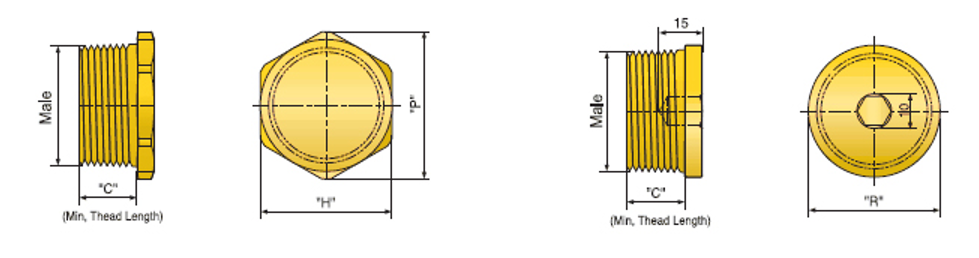

| SP Type/Size | Entry thread size (M) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Metric | NPT/PF | PG | Metric | NPT | PF | PG | Metric | NPT/PF | PG | |
| SP-16 | M16 | - | 7 | 15 | - | - | 11 | 21 | - | 15 |
| SP-18 | M18 | - | - | 15 | - | - | - | 24 | - | - |
| SP-20 | M20 | 1/2" | 9 | 15 | 15 | 17 | 12 | 25 | 25 | 18 |
| SP-25 | M25 | 3/4" | 11 | 15 | 16 | 17 | 12 | 30 | 30 | 21 |
| SP-32 | M32 | 1" | 13.5 | 15 | 18 | 22 | 12 | 38 | 38 | 23 |
| SP-40 | M40 | 1-1/4" | 16 | 15 | 19 | 22 | 12 | 46 | 48 | 26 |
| SP-50 | M50 | 1-1/2" | 21 | 15 | 19 | 22 | 13 | 55 | 55 | 32 |
| SP-63 | M63 | 2" | 29 | 15 | 20 | 23 | 13 | 70 | 65 | 41 |
| SP-75 | M75 | 2-1/2" | 36 | 1.5P - 15 2.0P - 20" |
27 | 23 | 13 | 82 | 82 | 51 |
| SP-90 | M90 | 3" | 42 | 20 | 28 | 27 | 13 | 98 | 95 | 58 |
| SP-100 | M100 | 4" | 48 | 20 | 31 | 28 | 13 | 110 | 120 | 64 |
