A2

1. Sealing Area
Cable Outer Sheath - Single Compression.

2. Operating Temperature
-60℃ to +100℃

3. Materials
Brass, Brass with nickel plated, Aluminum and Stainless Steel 316

4. Ingress Protection
IP66/67

5. Accessories

Lock-Nut, Sealing washer, Serrated washer, Earth Tag and PVC Shroud

제품 문의하기

► HOW TO ORDER

➀A2-25-➁M25

➀ Cable Gland Type & Size ➁ Entry Thread Size(metric, NPT)

제품상세

※ The length of the thread can be changed on required.

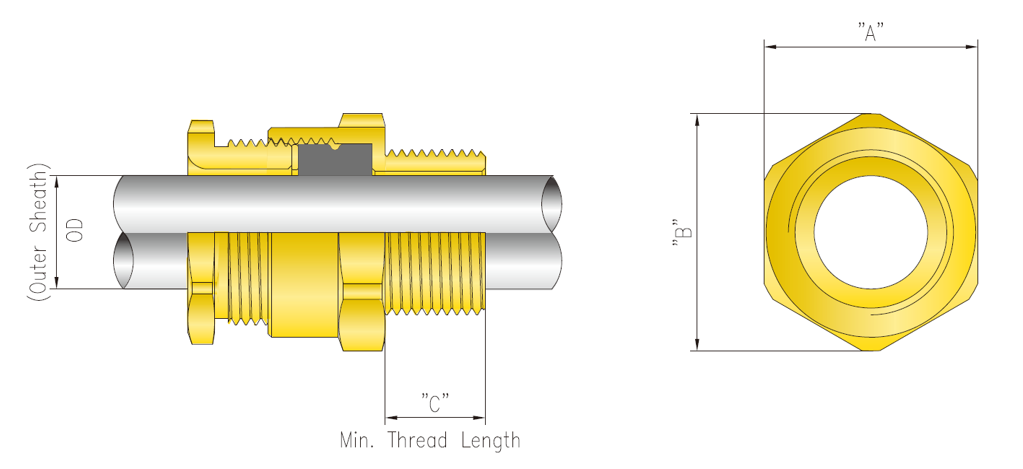

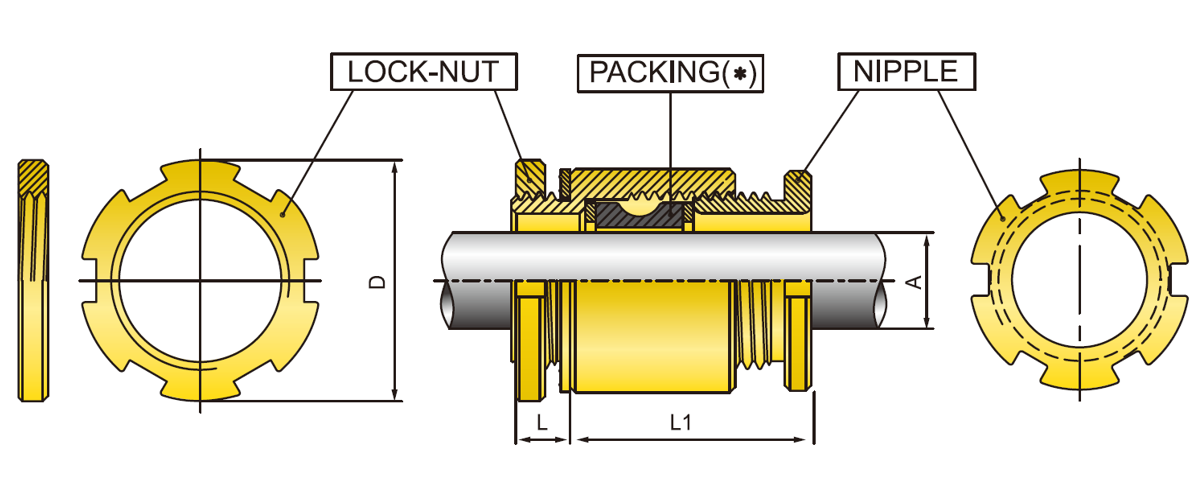

Cable Gland Size	Part No	Entry Thread Size(*)			Cable Acceptance Details (Outer Sheath ‘OD’)				Hexagon Dimensions			Min, Thread Length “c”
		Standard		Option	Standard Sea		Alternative Seal(S)		Across Flats “A”	Across Corners “B”
		Metric	NPT	NPT	Min.	Max.	Min.	Max.	Across Flats “A”	Metric	NPT
A2-M16a	A2-S-16a	M16	-	-	3	6	-	-	22	24.5	15	-
A2-M16b	A2-S-16b				6.1	10	4	8			15
A2-M20a	A2-S-20a	M20	1/2”	3/4”	3	6	-	-	24	26.8	15	15.5
A2-M20b	A2-S-20b				6.1	10	4	8			15
A2-M20c	A2-S-20c	M20	1/2”	3/4”	10.1	15	8.5	13	27	30	15	15.5
A2-M25	A2-S-25	M25	3/4”	1”	12	18	10	15	32	35.5	15	15.5
A2-M25a	A2-S-25a				16	20.5	-	-				20
A2-M32a	A2-S-32a	M32	1”	1 1/4”	18.1	23	16	21	39	43.5	15	20
A2-M32b	A2-S-32b				21	26	20	24
A2-M40	A2-S-40	M40	1 1/4”	1 1/2”	26.1	32	22	28	48	53.5	15	20
A2-M50	A2-S-50	M50	1 1/2”	2”	32.1	40	28	35	58	64	15	20.5
A2-M63a	A2-S-63a	M63	2”	2 1/2”	40.1	47	37	44	73	81	15	21
A2-M63b	A2-S-63b				47.1	54	43	50			15	32
A2-M75	A2-S-75	M75	2 1/2”	3”	55.1	65	50	58	85	94	15	32
A2-M80	A2-S-80	M80	3”	3 1/2”	65.1	71.5	61	67	100	109.5	20	35
A2-M90	A2-S-90	M90	3”	3 1/2”	70	77.6	67	73	105	113.5	20	35
A2-M100a	A2-S-100a	M100	4”	-	73.5	86	-	-	122	135	20	35
A2-M100b	A2-S-100b		-	-	80	92	-	-	122	135	20	35
A2-M115a	A2-S-115a	M115	-	-	86	98	-	-	138	152	20	-
A2-M115b	A2-S-115b		-	-	92	102	-	-	138	152	20	-
A2-M130a	A2-S-130a	M130	-	-	97	110	-	-	154	168	20	-
A2-M130b	A2-S-130b		-		104	116	-	-	154	168	20	-
