NORMAL CABLE GLAND
>E1W
Single Wire Armoured Cable Gland
1.Type of Cable Gland
E1W
2.Cable Type
Single Wire Armoure(SWA) - Steel or Aluminum Wire Armoure.
3.Double Compression
Cable inner bedding & Outer Sheath.
Indoor and Outdoor use.
4.Operating Temperature
-60℃ to +100℃
5.Materials
Brass, Brass with nickel plated, Aluminum and Stainless Steel 316.
6.Ingress Protection
IP66/67
7.Accessories
Lock-Nut, Sealing washer, Serrated washer,
Earth Tag and PVC Shroud
► HOW TO ORDER
E1W-25a / 2NPT
Entry Thread Size(metric, NPT) Cable Gland Type & Size
※ The length of the thread can be changed on required.

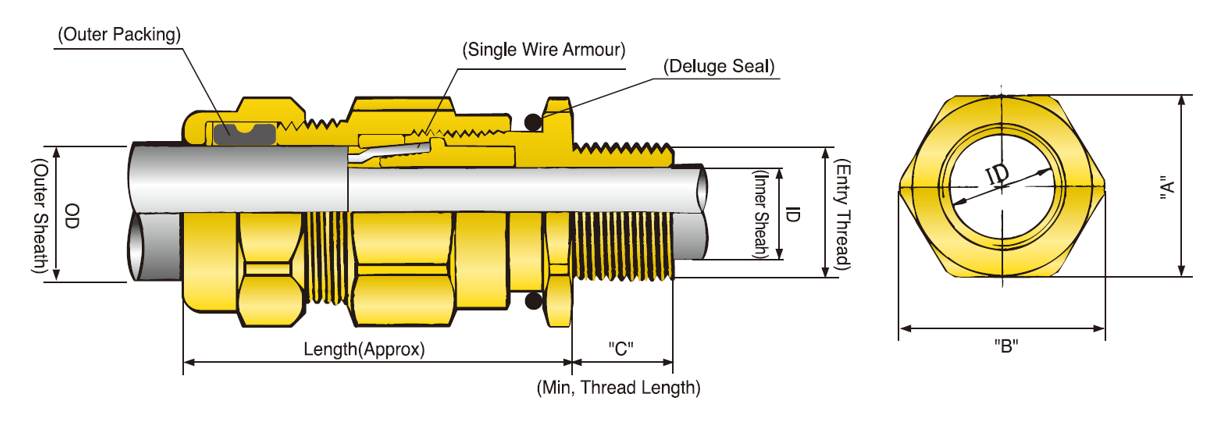

| Gland Size | Entry Thread Size | Cable Acceptance Details | Hexagon Dimensions | Thread Length “c” | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner Sheath ‘ID’ | Outer Sheath‘OD’ | Armour Size | |||||||||||||
| Standard Sea | Alternavive Seal (S) | Across Flats “A” | Across Corners “B” | Metric | NPT | PG | |||||||||
| Metric | NPT | PG | Min. | Max. | Min. | Max. | Min. | Max. | Min/Max. | ||||||
| E1W-2016 | M16/M20 | 1/2” | PG13.5 | 3 | 6.5 | - | - | 7 | 12 | 0.9/1.25 | 24 | 26.8 | 15 | 15.5 | 15 |
| E1W-20a | M20 | 1/2” | PG13.5 | 4.5 | 8 | 5 | 8.5 | 7 | 12 | 0.9/1.25 | 24 | 26.8 | 15 | 15.5 | 15 |
| E1W-20b | M20 | 1/2” | PG13.5 | 7.5 | 10.5 | 5 | 8 | 10.5 | 16 | 0.9/1.25 | 24 | 26.8 | 15 | 15.5 | 15 |
| E1W-20c | M20 | 1/2” | PG13.5 | 8.5 | 11.9 | - | - | 10.5 | 16 | 0.9/1.25 | 24 | 26.8 | 15 | 15.5 | 15 |
| E1W-20d | M20 | 1/2” | PG13.5 | 11 | 14.7 | 8.5 | 12.5 | 14.3 | 20 | 0.9/1.25 | 30 | 33.5 | 15 | 15.5 | 15 |
| 3/4” | |||||||||||||||
| E1W-25 | M25 | 3/4” | PG21 | 13 | 20.2 | 9.5 | 15.4 | 16.5 | 24 | 1.25/1.6 | 36 | 40.5 | 15 | 15.5 | 15 |
| E1W-25a | 1” | 18.5 | 26 | 20 | |||||||||||
| E1W-32a | M32 | 1” | PG29 | 19.7 | 26.7 | 15 | 21.2 | 22 | 31 | 1.6/2.0 | 45.8 | 51.2 | 15 | 20 | 15 |
| E1W-32 | 1 1/4” | 24 | 33 | 20 | |||||||||||
| E1W-40a | M40 | 1 1/4” | PG36 | 22 | 28 | 25 | 32.3 | 28 | 35 | 1.6/2.0 | 55 | 61.5 | 15 | 20 | 15 |
| 1 1/2” | 20.5 | ||||||||||||||
| E1W-40 | M40 | 1 1/4” | PG36 | 25 | 32.3 | 22 | 28 | 30 | 41 | 1.6/2.0 | 55 | 61.5 | 15 | 20 | 15 |
| 1 1/2” | 20.5 | ||||||||||||||
| E1W-50a | M50 | 1 1/2” | PG42 | 27.5 | 36.5 | 31.5 | 42.3 | 35 | 45 | 1.8/2.5 | 65 | 72.8 | 15 | 20.5 | 15 |
| 2” | 21 | ||||||||||||||
| E1W-50 | M50 | 1 1/2” | PG42 | 31.5 | 44.4 | 27.5 | 36.5 | 42 | 52.6 | 1.8/2.5 | 65 | 72.8 | 15 | 20.5 | 15 |
| 2” | 21 | ||||||||||||||
| E1W-63a | M63 | 2” | - | 39 | 47 | 42.5 | 54.3 | 46 | 56 | 1.8/2.5 | 80 | 89.5 | 15 | 21 | - |
| 2 1/2” | 32 | ||||||||||||||
| E1W-63 | M63 | 2” | - | 42.5 | 56.3 | 39 | 47 | 52 | 65.5 | 1.8/2.5 | 80 | 89.5 | 15 | 21 | - |
| 2 1/2” | 32 | ||||||||||||||
| E1W-75a | M75 | 2 1/2” | - | 48.5 | 58.3 | 54.5 | 65.3 | 57 | 67 | 1.8/2.5 | 95 | 104.5 | 15 | 32 | - |
| 3” | 33.5 | ||||||||||||||
| E1W-75b | M75 | 2 1/2” | - | 57 | 69 | - | - | 64 | 78.3 | 1.8/2.5 | 95 | 104.5 | 15 | - | |
| 3” | 33.2 | ||||||||||||||
| E1W-75 | M75 | 2 1/2” | - | 54.5 | 68.2 | 48.5 | 58.3 | 64 | 78.3 | 1.8/2.5 | 95 | 104.5 | 15 | 32 | - |
| 3” | 33.5 | ||||||||||||||
| E1W-80 | M80 | 3 1/2” | - | 67 | 73 | 60 | 68 | 75 | 89.5 | 1.8/3.2 | 107 | 114 | 20 | 35 | - |
| E1W-90 | M90 | 3 1/2” | - | 67 | 77.6 | 60 | 68 | 75 | 89.5 | 1.8/3.2 | 115 | 123 | 20 | 35 | - |
| E1W-100 | M100 | 4” | - | 76.5 | 91.6 | 70 | 81 | 88 | 104.5 | 1.8/3.2 | 128 | 139 | 20 | 36 | - |
| E1W-115 | M115 | - | - | 86 | 100 | - | - | 99 | 113 | 3.15/4.0 | 138 | 146.5 | 20 | - | - |
| E1W-130 | M130 | - | - | 98 | 113 | - | - | 110 | 125 | 3.15/4.0 | 150 | 162 | 20 | - | - |
