NORMAL CABLE GLAND
>ML
ML Type Cable Gland
1. Design specification
DIN 40430, ISO Metric Thread
2. Application
For use with all types of unarmoured cable.
Suitable for fixing wires of machines, electrical applications,
Mechanical control boards/ boxes.
3. Ingress protection
IP66 / 68
4. Material
Brass, Brass with Nickel Plated(Standard), Stainless Steel
► HOW TO ORDER
ML 9 / (M16)
Gland Type Size Packing Size
※ The length of the thread can be changed on required.

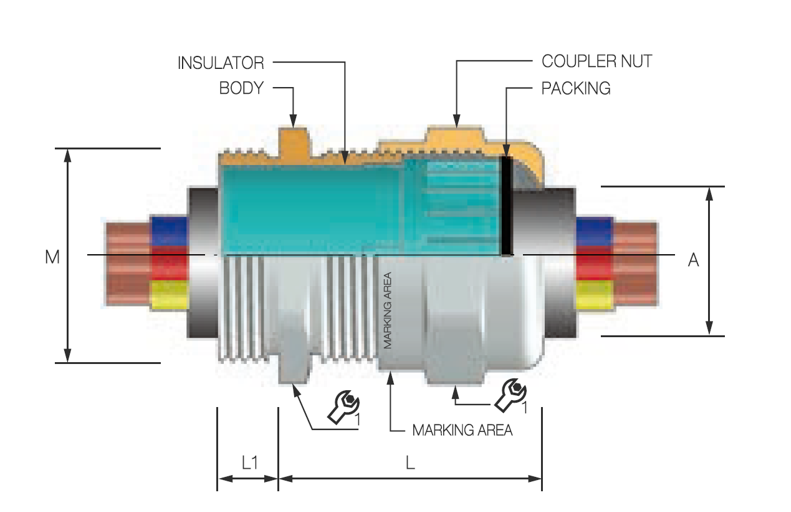

| ML Type/Size | Entry thread size (M) | Cable Range(A) | L | L1 | |||
|---|---|---|---|---|---|---|---|
| PG | Metric | NPT,PF | |||||
| ML-7 | 7 | M12x1.25P | 1/4” | 3 ~ 6.5 | 17 | 6 | 14 |
| ML-9 | 9 | M16x1.5P | 3/8” 1/2” |
4 ~ 8.5 | 20 | 7 | 17 |
| NML-11 | 11 | M16x1.5P M20x1.5P |
3/8” 1/2” |
5 ~ 10.5 | 21 | 7.5 | 20 |
| ML-13.5 | 13.5 | M16x1.5P M20x1.5P |
1/2” | 7 ~ 12.5 | 22 | 7.5 | 22 |
| ML-16 | 16 | M20x1.5P M25x1.5P |
1/2” | 10 ~ 14.5 | 22 | 7.5 | 24 |
| ML-21 | 21 | M25x1.5P M32x1.5P |
3/4” 1” |
13 ~ 18 | 25.5 | 8 | 30 |
| ML-29 | 29 | M32x1.5P M40x1.5P |
1” 1-1/4” |
18 ~ 24 | 28.5 | 9 | 40 |
| ML-36 | 36 | M40x1.5P M50x1.5P |
1-1/4”2” | 24 ~ 33 | 31 | 14 | 50 |
| ML-42 | 42 | M50x1.5P | 2” | 29 ~ 37.5 | 33.5 | 14 | 57 |
| ML-48 | 48 | M63x1.5P | 2” | 34 ~ 43 | 36.5 | 14 | 64 |
| ML-52 | 52 | M63x1.5P | 2” | 43 ~ 55 | 42 | 15 | 78 |
