NORMAL CABLE GLAND
>WD

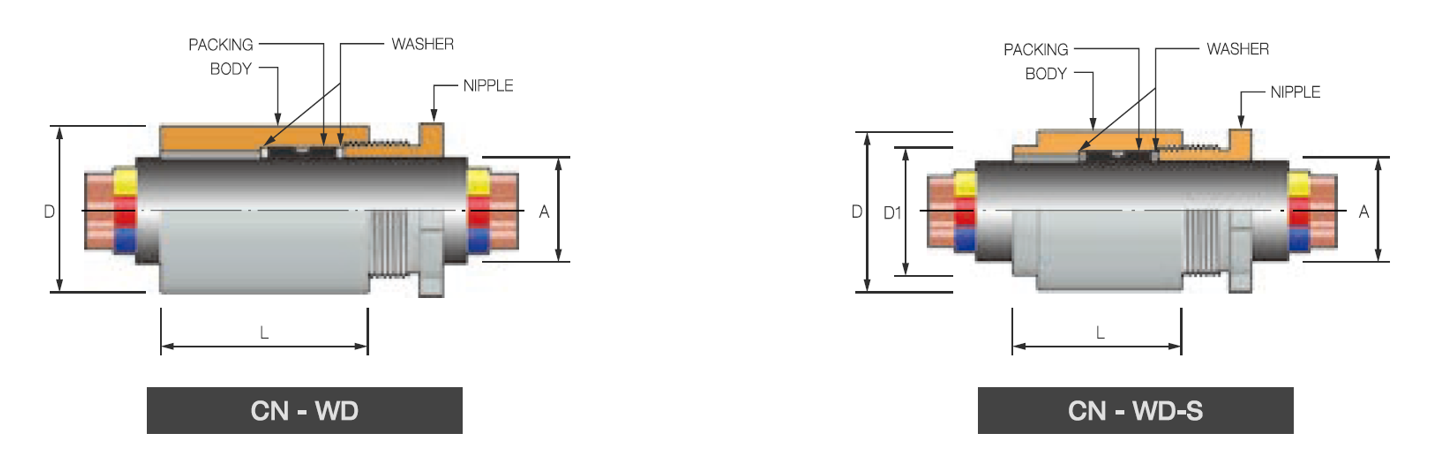

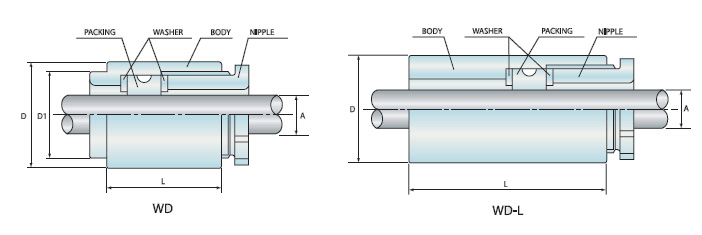

Welding Type Cable Gland
1.Design specification
DIN 89280 Type Gland
2.Application
For use with all types of unarmoured cable.
The length of body is 50mm.(Standard)
3.Material
Body part : Electro-galvanized Steel(Standard), Stainless Steel, Aluminium
Nipple part : Brass with Chrome Plated(Standard), Stainless Steel
► HOW TO ORDER
WD-S 20 / C
Gland Type / Size Packing Size
※ The length of the thread can be changed on required.
| WD/WD-S Type/Size |
Entry thread size (M) | Cable Range(A) | Packing I.D | D1 | D | L1 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| WD | WD-S | a | b | c | ||||||
| WD-10 | WD-S-10 | 23 | 17 | 6~8 | 7 | 8 | - | 16 | 22 | 50(standard)~1000 |
| WD-15 | WD-S-15 | 29 | 21 | 8~11 | 9 | 10 | 11 | 20 | 28 | |
| WD-20 | WD-S-20 | 36 | 26.5 | 11~15 | 12 | 13 | 15 | 26 | 34 | |
| WD-25 | WD-S-25 | 44 | 33.5 | 15~20 | 16 | 18 | 20 | 32 | 42 | |
| WD-30 | WD-S-30 | 52 | 42 | 20~26 | 22 | 24 | 26 | 41 | 50 | |
| WD-35 | WD-S-35 | 58 | 48 | 26~30 | 28 | 30 | - | 47 | 56 | |
| WD-40 | WD-S-40 | 58 | 48 | 30~34 | 32 | 34 | - | 47 | 56 | |
| WD-45 | WD-S-45 | 72 | 60 | 34~40 | 36 | 38 | 40 | 59 | 70 | |
| WD-50 | WD-S-50 | 72 | 60 | 40~44 | 42 | 44 | - | 59 | 70 | |
| WD-55 | WD-S-55 | 88 | 75.5 | 44~50 | 46 | 48 | 50 | 74 | 86 | |
| WD-60 | WD-S-60 | 88 | 75.5 | 50~56 | 52 | 54 | 56 | 74 | 86 | |
| WD-65 | WD-S-65 | 102 | 88 | 56~60 | 58 | 60 | - | 87 | 100 | |
| WD-70 | WD-S-70 | 102 | 88 | 60~64 | 62 | 64 | - | 87 | 100 | |
| WD-75 | WD-S-75 | 102 | 88 | 64~68 | 66 | 68 | 70 | 87 | 100 | |
| WD-80 | WD-S-80 | 112 | 101 | 70~74 | 72 | 74 | - | 100 | 110 | |
| WD-85 | WD-S-85 | 112 | 101 | 74~78 | 76 | 78 | - | 100 | 110 | |
| WD-90 | WD-S-90 | 132 | 114 | 78~82 | 80 | 82 | - | 112 | 130 | |
| WD-95 | WD-S-95 | 132 | 114 | 82~86 | 84 | 86 | - | 112 | 130 | |
| WD-100 | WD-S-100 | 132 | 114 | 86~93 | 88 | 93 | - | 112 | 130 | |
