NORMAL CABLE GLAND
>PG
PG Cable Gland
1. Material
Body-Brass / Nickel Plated
2. Insulator
Polyamide & Neoprene
3. Applications
PG-xML made out of Brass that is suitable for use in machinery,
chemical engineering, plant construction and in many other applications
where it is needed for special stability and high reliability.
4. Protection class
IP68 (IEC60529)
※ The length of the thread can be changed on required.

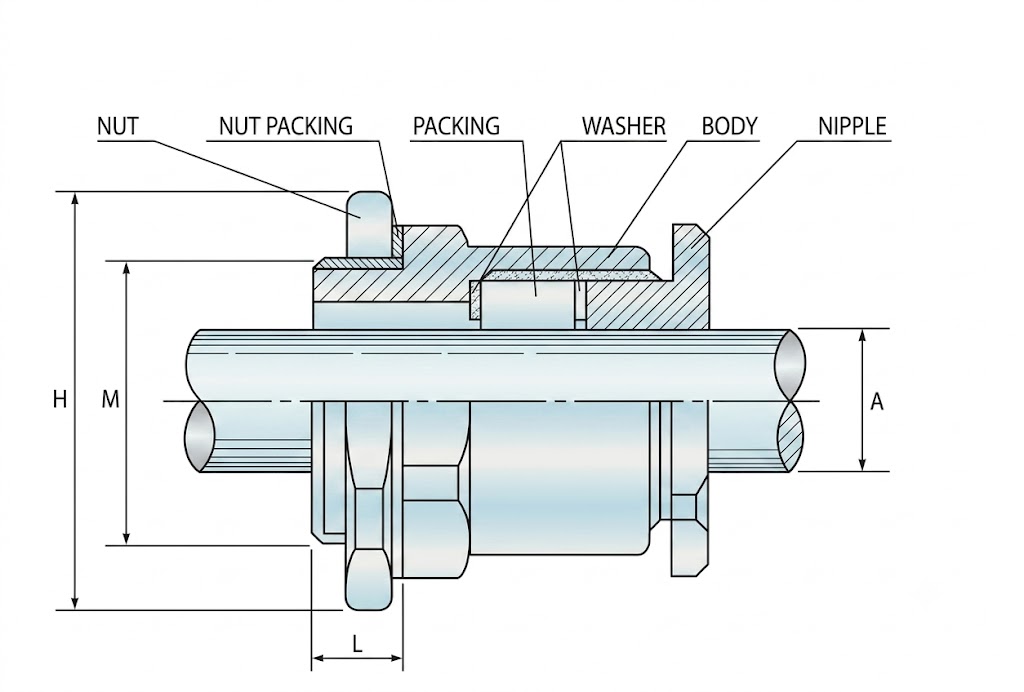

| PART NO | To suit cable dia between mm | A | B | C | D | E | F | G | H | Number of threads per inch |
|---|---|---|---|---|---|---|---|---|---|---|
| PG-7 ML | 2-6.5 | Ø13.8 | 6.7 | 3 | 5.1 | 2.8 | Ø12.4 | Ø12.6 | 15 | 20 |
| PG-9 ML | 4-8 | Ø16.7 | 8.2 | 3.5 | 6 | 2.8 | Ø15.1 | Ø15.3 | 18 | 18 |
| PG-11 ML | 5-10 | Ø19.7 | 10.2 | 3.5 | 6.1 | 3 | Ø18.4 | Ø18.6 | 21 | 18 |
| PG-13.5ML | 6-12 | Ø21.7 | 12.2 | 3.5 | 6.5 | 3.1 | Ø20.2 | Ø20.4 | 23 | 18 |
| PG-16 ML | 10-14 | Ø23.7 | 14 | 4 | 6.5 | 3.2 | Ø22.3 | Ø22.5 | 26 | 18 |
| PG-21 ML | 13-18 | Ø29.7 | 18.1 | 4 | 7 | 3.7 | Ø28.0 | Ø28.2 | 32 | 16 |
| PG-29 ML | 18-25 | Ø39.7 | 25.2 | 5 | 8 | 4.2 | Ø36.8 | Ø37.0 | 41 | 16 |
| PG-36 ML | 22-32 | Ø49.7 | 34 | 5.9 | 15.1 | 5.2 | Ø46.8 | Ø47.0 | 51 | 16 |
| PG-42 ML | 30-38 | Ø56.7 | 38.1 | 7 | 15.1 | 5.2 | Ø53.7 | Ø53.9 | 60 | 16 |
| PG-48 ML | 34-44 | Ø63.6 | 44.2 | 7 | 10 | 6 | Ø59.0 | Ø59.2 | 66 | 16 |
