EX CABLE GLAND
>A2FRC
Unarmoured & Braided Cable Gland
1. Cable Type
Unarmoured & Braided
2. Single Compression indoor and outdoor for conduit connection.
3. Flameproof(Ex'd') & Increased Safety(Ex'e')
4. Ingress Protection
IP66/IP67
5. Operating Temperature Range
-60℃ to +100℃
6. Materials
Brass, Brass with nickel plated, Aluminum and Stainless Steel 316(L)
7. Certificate No
Baseefa08 ATEX 0011X / IECEx BAS08.0003X.
8. Accessories
Lock-Nut, Sealing washer, Serrated washer, Earth Tag and A40
►HOW TO ORDER
{ A2FRC-M20c-1/2NPT }
Cable Gland Type & Size Entry Thread Size(Metric or NPT)
※ The length of the thread can be changed on required.

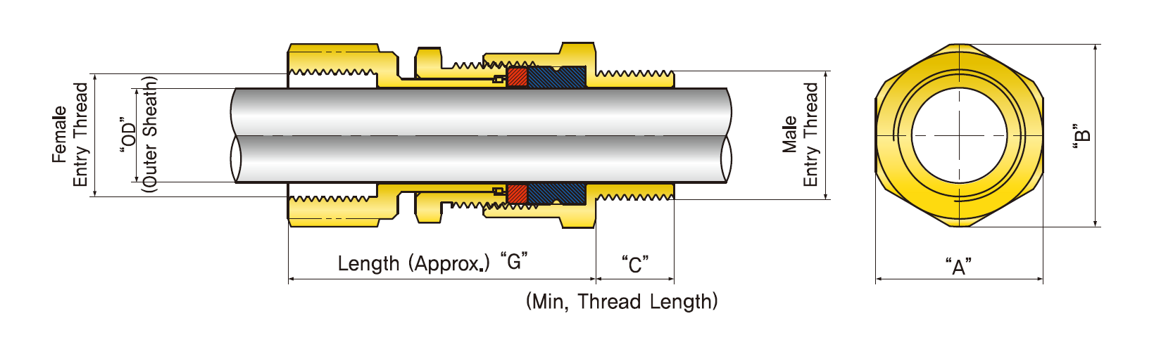

| Gland Size | Male Entry Thread Size |
Female Entry Thread Size (*) |
Cable Acceptance Details | Hexagon Dimensions |
“Min, Thread Length “C” |
Hexagon Dimensions (Option) |
“Min, Thread Length (Option) “C” |
Approx “G” |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Sheath ‘OD’ | ||||||||||||||||||
| Standard Seal | Alternative Seal(S) |
“Across Flats “A” |
“Across Corners “B” |
“Across Flats “A” |
“Across Corners “B” |
|||||||||||||
| Standard | Option | Standard | Option | |||||||||||||||
| Metric | NPT | NPT | Metric | NPT | NPT | Min. | Max. | Min. | Max | Metric | NPT | NPT | ||||||
| A2FRC-M16a | M16 | - | - | M16 | - | - | 3 | 6 | - | - | 24 | 26.8 | 15 | - | - | - | - | 54 |
| A2FRC-M16b | M16 | - | - | M16 | - | - | 6.1 | 10 | 4.0 | 8.0 | 24 | 26.8 | 15 | - | - | - | - | 54 |
| A2FRC-M20a | M20 | 1/2″ | 3/4″ | M20 | 1/2″ | 3/4″ | 3 | 6 | - | - | 24 | 26.8 | 15 | 20 | 30 | 33.5 | 20 | 54 |
| A2FRC-M20b | M20 | 1/2″ | 3/4″ | M20 | 1/2″ | 3/4″ | 6.1 | 10 | 4.0 | 8.0 | 24 | 26.8 | 15 | 20 | 30 | 33.5 | 20 | 54 |
| A2FRC-M20c | M20 | 1/2″ | 3/4″ | M20 | 1/2″ | 3/4″ | 10.1 | 15 | 8.5 | 13 | 27 | 30 | 15 | 20 | 30 | 33.5 | 20 | 56 |
| A2FRC-M25 | M25 | 3/4″ | 1″ | M25 | 3/4″ | 1″ | 12 | 18 | 10 | 15 | 32 | 35.5 | 15 | 20 | 36 | 40.5 | 25 | 59 |
| A2FRC-M25a | 16 | 20.5 | - | - | ||||||||||||||
| A2FRC-M32a | M32 | 1″ | 1-1/4″ | M32 | 1″ | 1-1/4″ | 18.1 | 23 | 16 | 21 | 39 | 43.5 | 15 | 25 | 46 | 51.2 | 25.6 | 62 |
| A2FRC-M32b | 21 | 26 | 20 | 24 | ||||||||||||||
| A2FRC-M40 | M40 | 1-1/4″ | 1-1/2″ | M40 | 1-1/4″ | 1-1/2″ | 26.1 | 32 | 22 | 28 | 48 | 53.5 | 15 | 25.6 | 55 | 61.5 | 26 | 66 |
| A2FRC-M50 | M50 | 1-1/2″ | 2″ | M50 | 1-1/2″ | 2″ | 32.1 | 40 | 28 | 35 | 58 | 64 | 15 | 26 | 65 | 72.8 | 27 | 69 |
| A2FRC-M63a | M63 | 2″ | 2-1/2″ | M63 | 2″ | 2-1/2″ | 40.1 | 47 | 39 | 44 | 73 | 81 | 15 | 27 | 80 | 89.5 | 40 | 73 |
| A2FRC-M63b | 47.1 | 54 | 43 | 50 | ||||||||||||||
| A2FRC-M75 | M75 | 2-1/2″ | 3″ | M75 | 2-1/2″ | 3″ | 55.1 | 65 | 50 | 58 | 85 | 94 | 15 | 40 | 95 | 104.5 | 41.5 | 85 |
| A2FRC-M80 | M80 | 3″ | 3-1/2″ | M80 | 3″ | 3-1/2″ | 65.1 | 71.5 | 61 | 67 | 100 | 109.5 | 20 | 41.5 | 105 | 113.5 | 42.7 | 97 |
| A2FRC-M90 | M90 | 3″ | 3-1/2″ | M90 | 3″ | 3-1/2″ | 70 | 77.6 | 67 | 73 | 105 | 113.5 | 20 | 41.5 | 105 | 113.5 | 42.7 | 97 |
| A2FRC-M100a | M100 | 3-1/2″ | 4″ | M100 | 3-1/2″ | 4″ | 74 | 86 | - | - | 122 | 135 | 20 | 42.7 | 122 | 135 | 44 | 105 |
| A2FRC-M100b | 81 | 92 | ||||||||||||||||
