EX CABLE GLAND
>EF
EX FLEXIBLE FITTINGS
1. Application
This conduit fitting have high flameproofness, adequate flexibility and universal jointability
They can be widely used for flexible wirings of conduit system in hazardous areas
2. Certification
KGS(15-GA2B0-0030X) KGS(15-GA2B0-0031X) KGS(15-GA2B0-0032X)
3. Type protection
Ex d IIC
The service temperature range is -20°C to +100°c
4. MateriaI
Flexible part : Stainless Steel
Connector part : Brass with Nickel Plated(Standard), Stainless Steel
► HOW TO ORDER
A2FRC-M20c-1 / 2NPT
Entry Thread Size Cable Gland Type & Size
(metric, NPT)

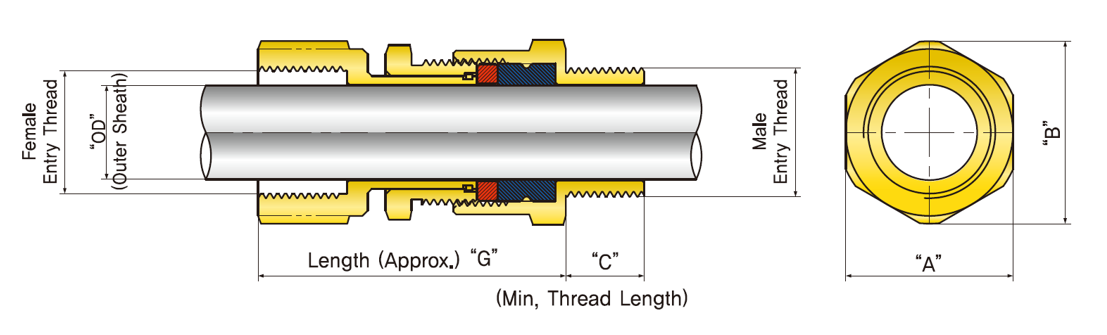

| EF Type/Size | Entry thread size (M) | Cable Range(A) | Thread length (L1) | Thread length (L1) | 1 | 2 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PF, NPT | Metric | PF | NPT | Metric | PF | NPT | Metric | ||||
| EF-16 | 1/2” | M20 | 6~13 | 17 | 15 | 15 | 18 | 18 | 17 | 30 | 33 |
| EF-22 | 3/4” | M25 | 13~18 | 17 | 16 | 15 | 19 | 18 | 17 | 38 | 41 |
| EF-28 | 1” | M35 | 18~22 | 22 | 18 | 15 | 24 | 23 | 17 | 45 | 50 |
| EF-36 | 1-1/4” | M40 | 22~29.5 | 22 | 19 | 15 | 25 | 25 | 17 | 53 | 58 |
| EF-42 | 1-1/2” | M50 | 29~35 | 22 | 19 | 15 | 27 | 25 | 17 | 59 | 64 |
| EF-54 | 2” | M63 | 35~46 | 23 | 20 | 15 | 28 | 27 | 17 | 73 | 78 |
| EF-70 | 2-1/2” | M75 | 46~56 | 23 | 27 | 15 | 30 | 30 | 17 | 88 | 95 |
| EF-82 | 3” | M90 | 56~75 | 27 | 28 | 20 | 31 | 32 | 19 | 102 | 110 |
| EF-104 | 4” | M110 | 75~88 | 28 | 31 | 20 | 33 | 33 | 20 | 130 | 138 |
