EX CABLE GLAND
>E1F(W)
Single Wire Armoured Calbe Gland
1.Design specification
BS 6121, IEC 62444, EN 50262
2.Application
For use with single wire armoured cable for Zone1 & Zone2 in hazardous area.
Double compression for outer/inner jacket of cable.
3.Certification
IECEx KGS (IECEx KGS 17.0001X) ATEX DEKRA (17ATEX0094X)
4.Type protection
112G Ex db IIC Gb / Ex eb IIC Gb / 112D Ex tb IIIC Db / IP66/67 The service temperature range is - 60"C to +120 "C
5.Material
Brass, Brass with Nickel Plated(Standard) , Stainless Steel Accessories
6.Accessories
Lock Nut, Gasket, Earth Tag, Shroud, Serrated Washer
►HOW TO ORDER
{➀ E1F(W) ➁ * ➂ ** ➃ *** }
➀ Basic of model ➁ Gland size
➂ Type of entry thread ➃ Entry thread size
Ex) { E1F(W)20a NPT3/4’ }
※ The length of the thread can be changed on required.

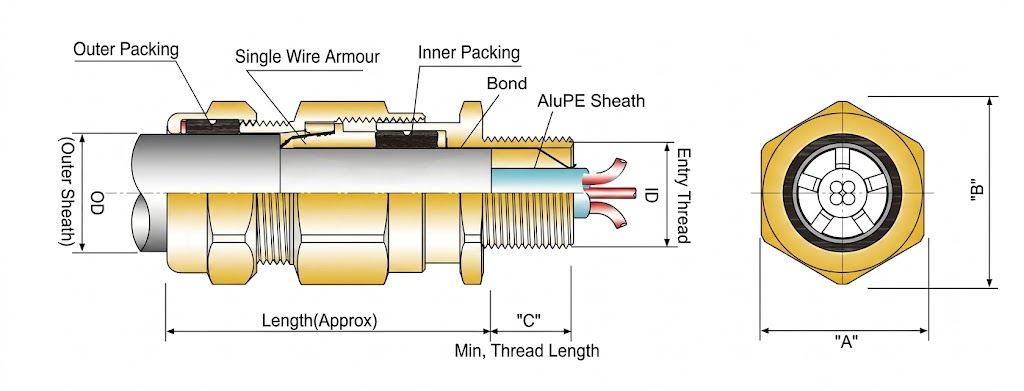

| CN-E1F(W) Type / Size |
Entry thread size (M) | Cable Range | Thread length (L1) | Armour size | 1 | L | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric | NPT, PF | lnner(A) | Outer(B) | Metric | NPT | PF | Min | Max | |||
| E1F(W)-16a | M16/M20 | 3/8" I 1/2" | 5~11 | 7~12 | 15 | 13 / 15 | 13 / 17 | 0.8 | 1.25 | 25 | 65 |
| E1F(W)-16b | M16 / M20 | 3/8" I 1/2" | 5~11 | 11~15 | 15 | 13 / 15 | 13 / 17 | 0.8 | 1.25 | 25 | 65 |
| E1F(W)-20a | M20 / M25 | 1/2" / 3/4" | 8 ~15 | 13 ~18 | 15 | 15 / 16 | 17 / 17 | 0.8 | 1.25 | 31 | 67 |
| E1F(W)-20b | M20 / M25 | 1/2" / 3/4" | 8 ~15 | 17~20 | 15 | 15 / 16 | 17 / 17 | 0.8 | 1.25 | 31 | 67 |
| E1F(W)-25a | M25 / M32 | 3/4" I 1" | 13~20 | 18~23 | 15 | 16 / 18 | 17 / 22 | 1.25 | 1.6 | 36 | 71 |
| E1F(W)-25b | M25 / M32 | 3/4" I 1" | 13~20 | 22~26 | 15 | 16 / 18 | 17 / 22 | 1.25 | 1.6 | 36 | 71 |
| E1F(W)-32a | M32 / M40 | 1" / 1-1/4" | 18~26 | 23~29 | 15 | 18 / 19 | 22 / 22 | 1.6 | 2 | 45 | 77 |
| E1F(W)-32b | M32 / M40 | 1" / 1-1/4" | 18~26 | 28~32 | 15 | 18 / 19 | 22 / 22 | 1.6 | 2 | 45 | 77 |
| E1F(W)-40a | M40 I M50 | 1-1/4" / 1-1/2" | 24~32 | 32~37 | 15 | 19 / 20 | 22 / 22 | 1.6 | 2 | 55 | 80 |
| E1F(W)-40b | M40 I M50 | 1-1/4" / 1-1/2" | 24~32 | 36~41 | 15 | 19 / 20 | 22 / 22 | 1.6 | 2 | 55 | 80 |
| E1F(W)-50a | M50 I M63 | 1-1/2" / 2" | 31~40 | 39~45 | 15 | 19 / 20 | 22 / 23 | 1.8 | 2.5 | 68 | 88 |
| E1F(W)-Sob | M50 I M63 | 1-1/2" / 2" | 31~40 | 45-50 | 15 | 19 / 20 | 22 / 23 | 1.8 | 2.5 | 68 | 88 |
| E1F(W)-63a | M63 / M75 | 2" I 2-1 /2" | 39~54.5 | 49~55 | 15 | 20 I 27 | 23 / 23 | 1.8 | 2.5 | 82 | 92 |
| E1F(W)-63b | M63 / M75 | 2-1/2" | 39~54.5 | 54~60 | 15 | 27 | 23 | 1.8 | 2.5 | 82 | 92 |
| E1F(W)-75a | M75 I M90 | 2-1 /2" / 3" | 52~64 | 59~65 | 15 | 27 I 28 | 23 / 27 | 1.8 | 2.5 | 98 | 99 |
| E1F(W)-75b | M75 / M90 | 2-1 /2" / 3" | 52~64 | 64~70 | 15 | 27 I 28 | 23 / 27 | 1.8 | 2.5 | 98 | 99 |
| E1F(W)-75c | M75 / M90 | 2-1 /2" / 3" | 52~64 | 70~76 | 15 | 27 I 28 | 23 / 27 | 1.8 | 2.5 | 98 | 99 |
| E1F (W)-90a | M90/M100 | 3" I 3-1 /2" | 63~78 | 74~80 | 20 | 28 I 30 | 27 I 28 | 2 | 3.5 | 110 | 105 |
| E1F(W)-90b | M90/M100 | 3" I 3-1 /2" | 63~78 | 79~85 | 20 | 28 I 30 | 27 I 28 | 2 | 3.5 | 110 | 105 |
| E1F(W)-90c | M90/M100 | 3" I 3-1 /2" | 63~78 | 84~90 | 20 | 28 I 30 | 27 I 28 | 2 | 3.5 | 110 | 105 |
| E1F(W)-100a | M100 | 3-1 /2" / 4" | 80~87 | 89~93 | 20 | 30 I 31 | 28 / 28 | 2 | 3.5 | 120 | 107 |
| E1F(W)-100b | M100 | 3-1 /2" / 4" | 80~87 | 93~98 | 20 | 30 I 31 | 28 / 28 | 2 | 3.5 | 120 | 107 |
