EX CABLE GLAND
>A2F
Non Armoured Cable Gland
1.Design specification
BS 6121, IEC 62444, EN 50262
2.Application
For use with all types of unarmoured and braided cable for Zone1 &
Zone2 in hazardous area. Single compression for jacket of cable.
3.Certification
IECEx KGS (IECEx KGS 16.0004X) ATEX DEKRA (17ATEX0093X)
4.Type protection
112G Ex db IIC Gb / Ex eb IIC Gb / 1120 Ex tb IIIC Db / IP66/67
The service temperature range is - 60"C to +120"C
5.Material
Brass, Brass with Nickel Plated(Standard) , Stainless Steel
6.Accessories
Lock Nut, Gasket, Earth Tag, Shroud, Serrated Washer
► HOW TO ORDER
A2F / 20b / NPT1/2"
Gland Type Size Entry Thread size
※ The length of the thread can be changed on required.

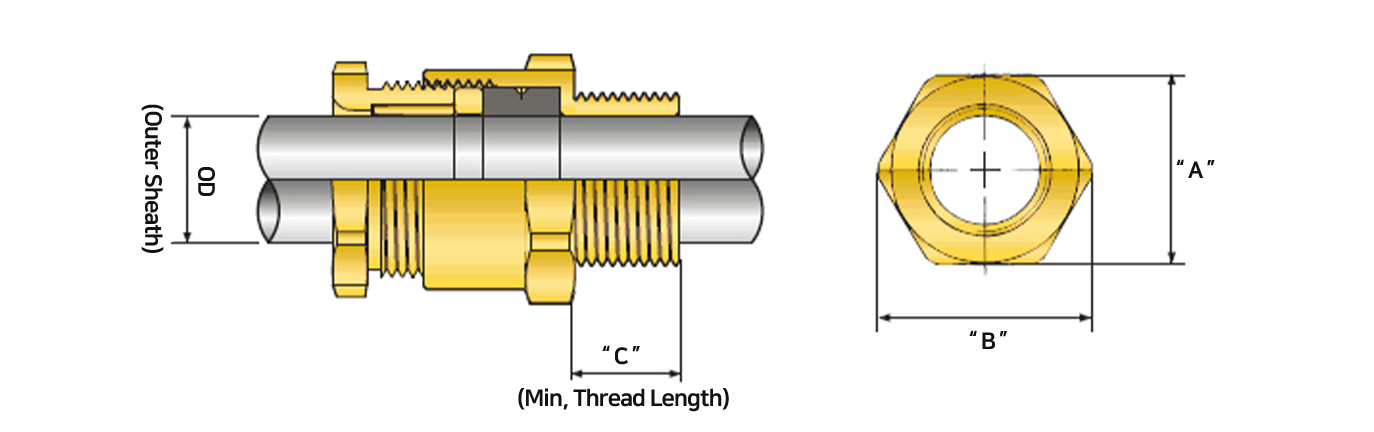

| A2F Type/Size |
Entry thread size (M) | Cable Range(A) |
Thread length (L1) | 1 | 2 | L | |||
|---|---|---|---|---|---|---|---|---|---|
| Metric | NPT,PF | Metric | NPT | PF | |||||
| A2F-16a | M16 / M20 | 3/8" / 1/2" | 4 ~ 8 | 15 | 13 / 15 | 13 / 17 | 22 | 19 | 20 |
| A2F-16b | M16 / M20 | 3/8" / 1/2" | 7 ~ 10 | 15 | 13 / 15 | 13 / 17 | 22 | 19 | 20 |
| A2F-20a | M20 / M25 | 1/2" / 3/4" | 9 ~ 13 | 15 | 15 / 16 | 17 / 17 | 27 | 24 | 21 |
| A2F-20b | M20 / M25 | 1/2" / 3/4" | 12 ~ 15 | 15 | 15 / 16 | 17 / 17 | 27 | 24 | 21 |
| A2F-25a | M25 / M32 | 3/4" / 1" | 14 ~ 18 | 15 | 16 / 18 | 17 / 22 | 32 | 28 | 25 |
| A2F-25b | M25 / M32 | 3/4" / 1" | 17 ~ 20 | 15 | 16 / 18 | 17 / 22 | 32 | 28 | 25 |
| A2F-32a | M32 / M40 | 1" / 1-1/4" | 18 ~ 23 | 15 | 18 / 19 | 22 / 22 | 39 | 34 | 26 |
| A2F-32b | M32 / M40 | 1" / 1-1/4" | 22 - 26 | 15 | 18 / 19 | 22 / 22 | 39 | 34 | 26 |
| A2F-40a | M40 / M50 | 1-1/4" / 1-1 /2" | 24 ~ 29 | 15 | 19 / 19 | 22 / 22 | 48 | 42 | 28 |
| A2F-40b | M40 / M50 | 1-1/4" / 1-1/2" | 28 -32.5 | 15 | 19 / 19 | 22 / 22 | 48 | 42 | 28 |
| A2F-50a | M50 / M63 | 1-1/2" / 2" | 31 ~ 37 | 15 | 19 / 20 | 22 / 23 | 58 | 53 | 30 |
| A2F-50b | M50 / M63 | 1-1/2" / 2" | 36 ~ 41 | 15 | 19 / 20 | 22 / 23 | 58 | 53 | 30 |
| A2F-63a | M63 / M75 | 2" / 2-1 /2" | 41 ~ 46 | 15 | 20 / 27 | 23 / 23 | 73 | 65 | 31 |
| A2F-63b | M63 / M75 | 2" / 2-1 /2" | 45 ~ 50 | 15 | 20 / 27 | 23 / 23 | 73 | 65 | 31 |
| A2F-63c | M63 / M75 | 2-1 /2" | 49 - 54.5 | 15 | 27 | 23 | 73 | 65 | 31 |
| A2F-75a | M75 / M90 | 2-1 /2" / 3" | 53 ~ 59 | 15 | 27 / 28 | 23 / 27 | 85 | 78 | 36 |
| A2F-75b | M75 / M90 | 2-1/2" / 3" | 58 ~ 63 | 15 | 27 / 28 | 23 / 27 | 85 | 78 | 36 |
| A2F-75c | M75 / M90 | 2-1 /2" / 3" | 62 - 66.5 | 15 | 27 / 28 | 23 / 27 | 85 | 78 | 36 |
| A2F-90a | M90 / M100 | 3" / 3-1/2" | 64 ~ 69 | 20 | 28 / 30 | 27 / 28 | 100 | 92 | 38 |
| A2F-90b | M90 / M100 | 3" / 3-1 /2" | 68 ~ 73 | 20 | 28 / 30 | 27 / 28 | 100 | 92 | 38 |
| A2F-90c | M90 / M100 | 3" / 3-1 /2" | 72 ~ 77 | 20 | 28 / 30 | 27 / 28 | 100 | 92 | 38 |
| A2F-100a | M100 | 3-1/2" / 4" | 76 ~ 81 | 20 | 30 / 31 | 28 / 28 | 112 | 104 | 40 |
| A2F-100b | M100 | 3-1/2" / 4" | 80 ~ 85 | 20 | 30 / 31 | 28 / 28 | 112 | 104 | 40 |
| A2F-100c | M100 | 3-1/2" / 4" | 84 ~ 89 | 20 | 30 / 31 | 28 / 28 | 112 | 104 | 40 |
